DaierTek 5PCS ON Off Round Rocker Switches SPST 20mm Mini 12 Volt DC
DaierTek 5PCS ON Off Round Rocker Switches SPST 20mm Mini 12 Volt DC
Couldn't load pickup availability

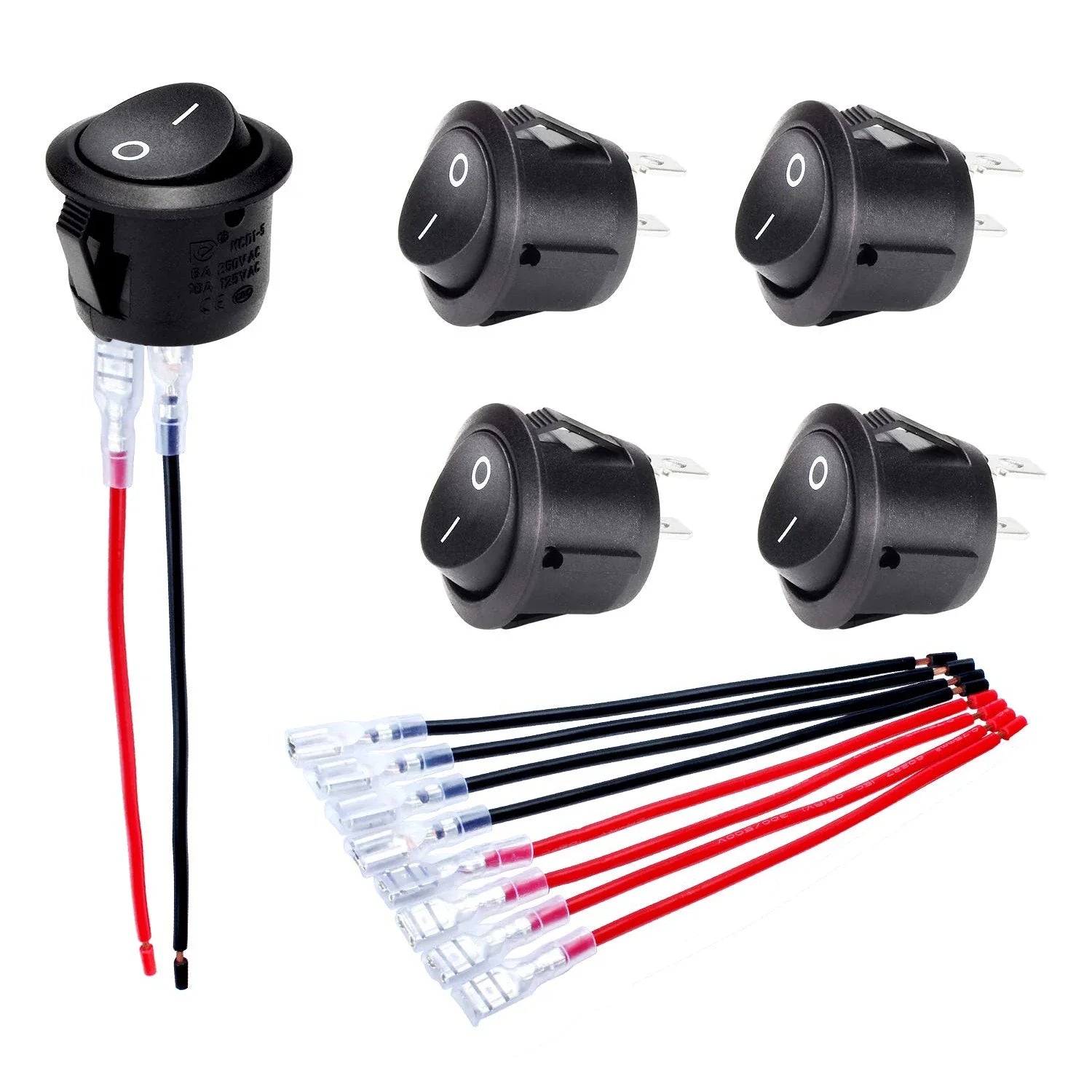

DaierTek 5PCS ON Off Round Rocker Switches SPST 20mm Mini 12 Volt DC Mini Circle Toggle Switch 12V for Car Automotive RV 2 Pin
About this item
Features: "O I" marked on black button 12V Rocker Switch with 5 sets of wires(#187 Lock Terminals on end) for switch easy connection.
Material: The KCD1 Small round rocker switch is made of nylon PA66. The terminals are made of brass with silver plated.
Function: The ON/OFF rocker switch is 2 pin SPST design (single pole single throw) ON OFF. The rating is 10A 120V AC and 20A 12V DC.

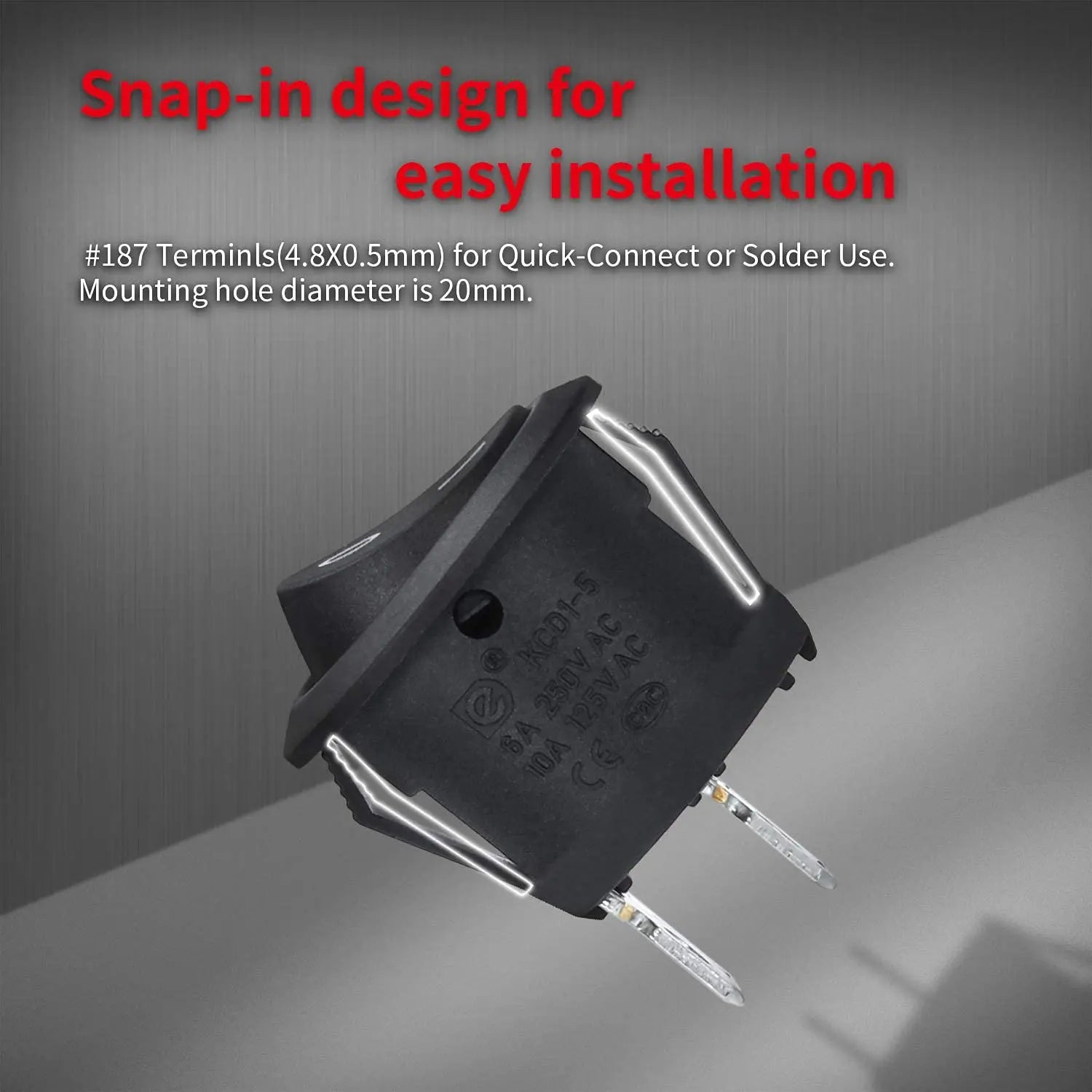

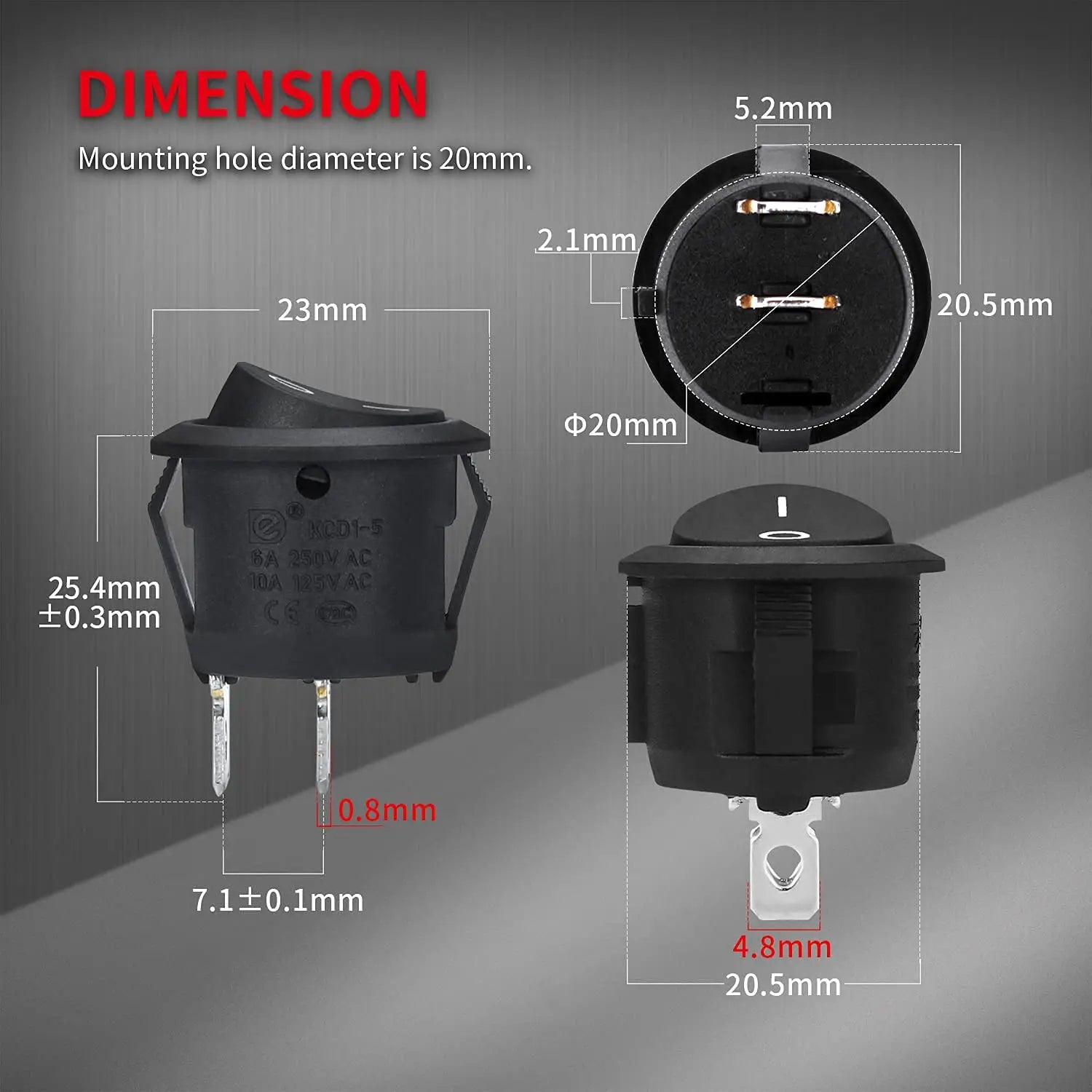

Installation: The mounting hole size of this Mini 12 Volt rocker switch is 0.787 inches (20mm). It adopts snap-in design, easy to install.

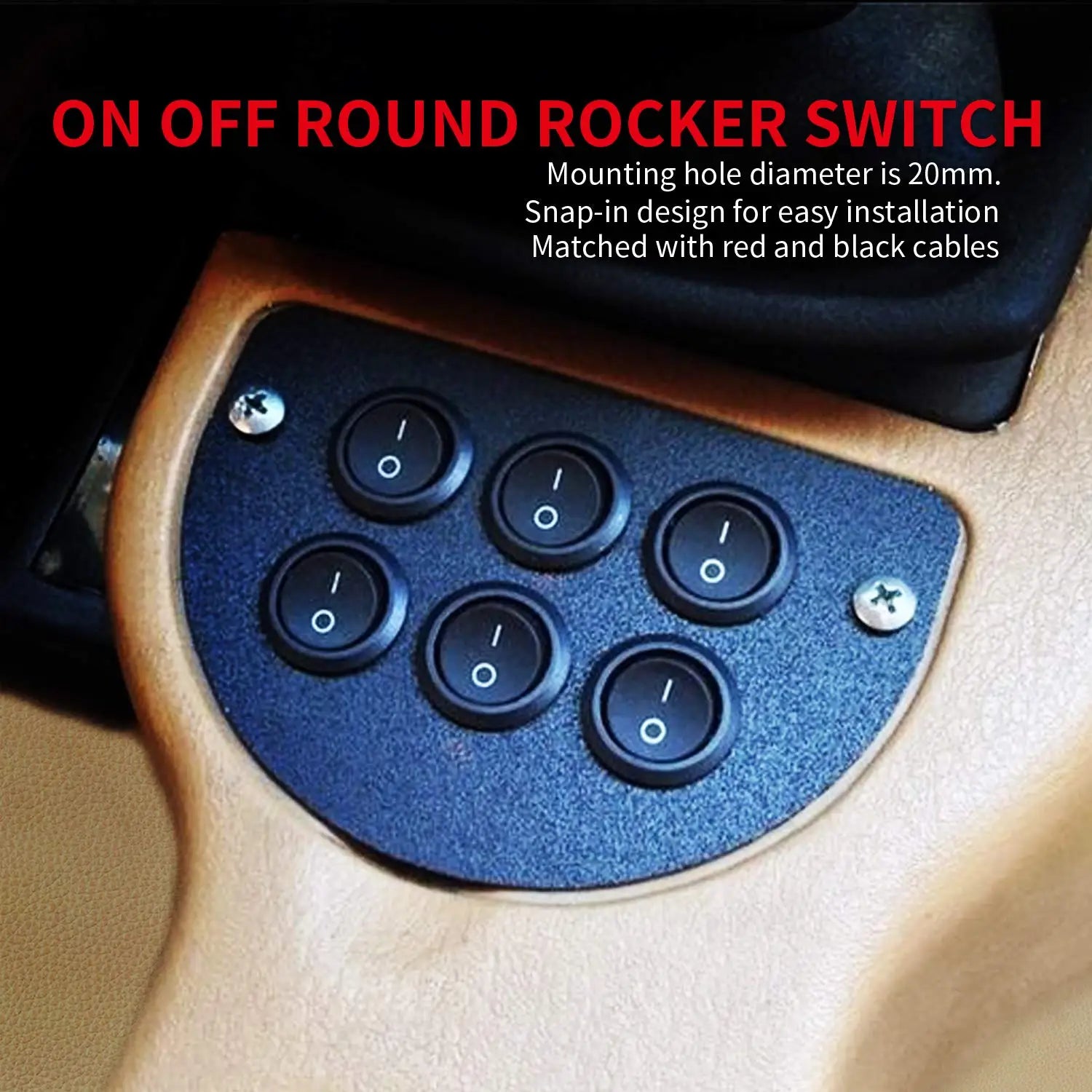

Application: The Circle round rocker toggle switch is widely applied to Car Automotive RV Household appliances, etc.
ON OFF Round Rocker Switch Spec:

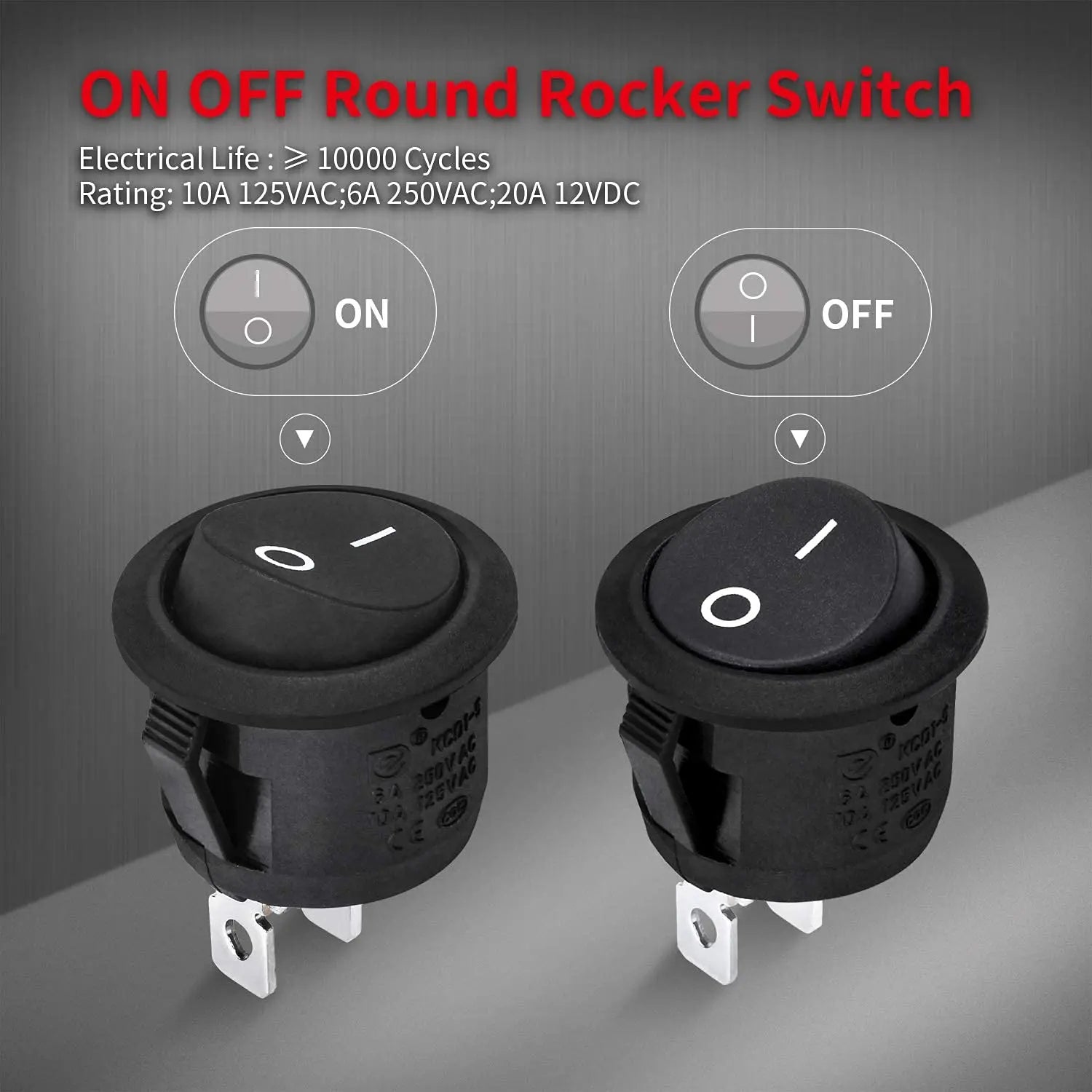

Rating: 10A 125VAC; 6A 250VAC; 20A 12VDC
Function: SPST 2 PIN ON/OFF
Shape: Round Shape, Black Color

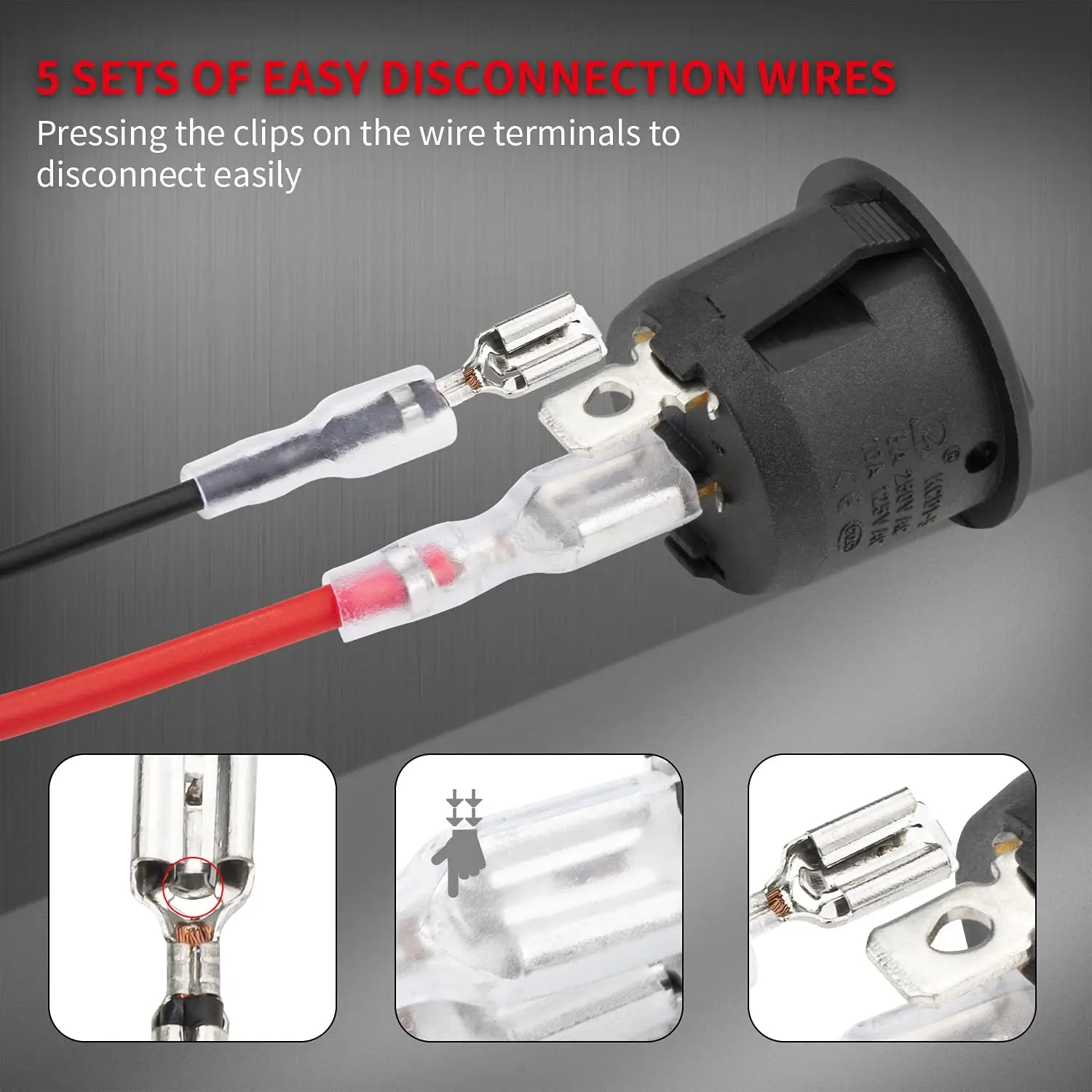

Features: with 5 sets of #187 Terminal Wires
Insulated Resistance : ≥ 100 MΩ
Contact Resistance : ≤50 mΩ
Dielectric Strength : ≥ 1500V AC/5S
Operating Temperature : T85
Electrical Life : ≥10000 Cycles
|
|
|
SPST ON OFF SwitchKCD1 ON OFF rocker switch is 2 pin SPST ON/OFF function(single pole single throw) with #187 quick-connect wires. 10A 120V AC; 20A 12V DC Rating. |
T85 Small Mini SwitchThe 20mm Small 12V rocker switch is Snap in Panel Mount design for easy installation. It comes with a keyhole slot to prevent unwanted rotation. |
Round Switch ApplicationThe Mini Round rocker switch can be widely applied to various vehicles DIY including car, Automotive, RV, Marine, boat, and Electronics modification. |
