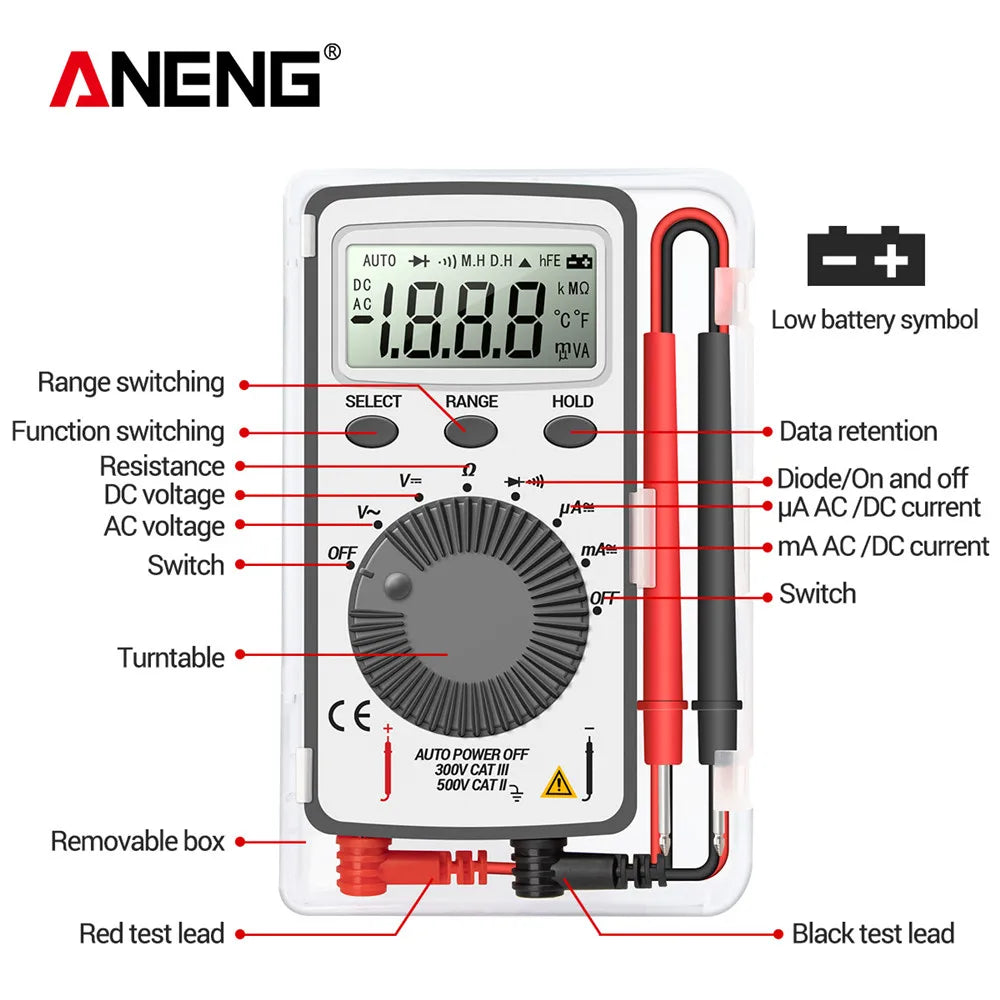

ANENG AN101 1999 Counts Mini Professional Digital Multimeter AC/DC

• Display: LCD, 1999 counts updates 2/sec

• Polarity Indication: "-" displayed automatically

• Over-range Indication: "OL" displayed

• Range select: auto or manual

• Battery Type: 3V x 2,2032 size (not included)

• Operation Temperature: 0℃ to 40℃, less than 80%RH

• Storage Temperature: -10℃ to 50℃, less than 85%RH

DC Voltage (Auto ranging):

• Range, Resolution & Accuracy

• 200mV, 0.1mV, ±(0.8% of rdg + 5dgts)

• 2V, 1mV, ±(0.5% of rdg + 2dgts)

• 20V, 10mV

• 200V, 100mV

• 600V, 1V, ±(1.0% of rdg + 5dgts)

• Input Impedance: 10MΩ

• Overload Protection: 600V DC/AC rms

• Max. Input Voltage: 600V DC

AC Voltage (Auto ranging):

• Range, Resolution & Accuracy

• 2V, 1mV, ±(1.2% of rdg + 3dgts)

• 20V, 10mV

• 200V, 100mV

• 600V, 1V, ±(1.2% of rdg + 8dgts)

• Input Impedance: 10MΩ

• Frequency Range: 40Hz ~ 400Hz

• Overload Protection: 600V DC/AC rms

• Response: Average, calibrated in rms of sine wave

• Max. Input voltage: 600V AC rms

DC Current:

• Range, Resolution & Accuracy

• 200µA, 0.1µA, ±(0.8% of rdg + 5dgts)

• 2000µA, 1µA

• 20mA, 10µA

• 200mA, 100µA

• Overload Protection: F0.5A/600V fuse

• Max. Input Current: 500mA

• Voltage Drop: 200µA and 20mA ranges: 20mV

• 2000µA and 200mA ranges: 200mV

AC Current:

• Range, Resolution & Accuracy

• 200µA, 0.1µA, ±(1.0% of rdg + 5dgts)

• 2000µA, 1µA

• 20mA, 10µA

• 200mA, 100µA

• Overload Protection: F0.5A/600V fuse

• Max. Input Current: 500mA

• Voltage Drop: 200µA and 20mA ranges: 20mV

• 2000µA and 200mA ranges: 200mV

• Frequency Range: 40Hz ~ 400Hz

• Response: Average, calibrated in rms of sine wave

Package included:(Without Battery)

• 1 x Digital Multimeter

• 1 x Test Leads

Note:

• Please allow 0-1cm errors due to manual measurement.

• Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
